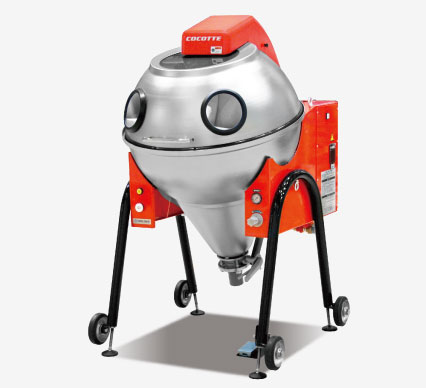

Manual wet blasting equipment MRB-7
Equipment Overview
MRB-7
Manual wet blasting equipment
Compact wet blasting equipment that is ideal for cleaning.
This is a compact, manual version of our wet blasting system. Ideal for cleaning small workpieces for maintenance and rebuilding. The types of abrasive materials that can be used are limited.
Refer to the equipment catalogs "MRB-7" for this equipment.
Equipment Features
- Manual
- Lot product
- 3/8 in. Compact Gun x 1
- Manual Loading & Unloading
- Manual Processing
Main Applications
Flow Inside the Equipent
Loading and unloading of workpieces and wet blasting are done manually.
Wet Blasting (Manual)
Equipment Spec
Dimensions | 1000(W) x 1100(D) X 1570(H)mm |
---|---|
Workpiece Sizes | φ600 × 300(H)mm |
Basic Load Capacity | 10kg |
Gun | 3/8 in. Compact Gun x 1 |
Power Supply | AC200V, 50/60 Hz, 3 phases |
Power Consumption | Approximately 1.0 kW (total of all equipment and rated power) |
Air Supply Pressure | 0.5 MPa-0.7 MPa |
Air Consumption | 0.7 m3/min (NTP, at 0.4 MPa of preset blast air pressure) |
