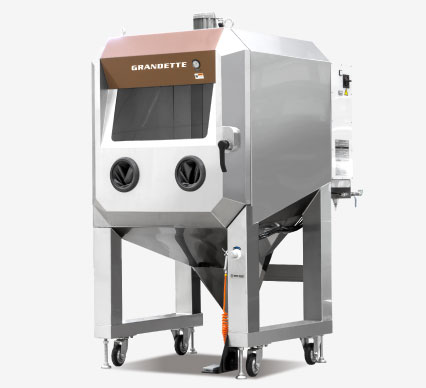

Manual wet blasting equipment for heavy loads MS-12

Equipment Overview

MS-12

Manual wet blasting equipment for heavy loads

Large manual equipment that can handle large and heavy objects and reduces costs through lot production.

Manual equipment with high wear-resistant specifications. Ideal for maintenance and rebuilding work of large, heavy workpieces, and is capable of handling up to 50 kg. By opening and closing the upper part of the cabinet, workpieces can be loaded and unloaded using a crane.

Catalog Download Page

Refer to the equipment catalogs "MS-12" for this equipment.

Equipment Features

Manual
Lot product

3/8 in. Compact Gun x 1
Manual Loading & Unloading
Manual Processing

Main Applications

Maintenance of plant equipment

Wet Blast can physically clean oil, rust, dirt, etc. that adhered to the parts that were removed during equipment maintenance.

Cleaning of critical parts for maintenance

Removes rust and stubborn stains, streamlining operations and significantly reducing maintenance time.

Flow Inside the Equipent

Loading and unloading of workpieces and wet blasting are done manually.

Wet Blasting (Manual)

Equipment Spec

Dimensions	1050(W) x 1329(D) X 1935(H)mm
Workpiece Sizes	φ750 × 600 mm
Basic Load Capacity	50kg
Gun	3/8 in. Compact Gun x 1
Power Supply	AC200V, 50/60 Hz, 3 phases
Power Consumption	Approximately 1.2 kW (total of all equipment and rated power)
Air Supply Pressure	0.5 MPa-0.7 MPa
Air Consumption	0.7 m³/min (NTP, at 0.4 MPa of preset blast air pressure)
