Index-type wet blasting equipment WFB-902T

Equipment Overview

WFB-902T

Index-type wet blasting equipment

A wide-gun, 2-stage, index-type equipment that can process and set at the same time.

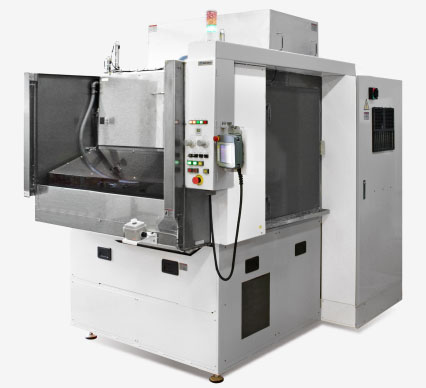

Index-type wet blasting equipment WFB-902T

This equipment is designed for small parts, alternating between two stages: a wet blasting section and a workpiece setting section. The X-axis drive, which moves the gun left and right, and the θ-axis drive, which tilts the gun in three positions, enable processing of the top and sides of three-dimensional workpieces.

Refer to the equipment catalogs "WFB-902T" for this equipment.

Equipment Features

  • Semi-automatic
  • Custom
  • 320 mm Wide Gun x 1
  • X-Axis Gun Drive
  • Manual Loading & Unloading
  • Automatic Processing
  • Two-Stage Index Type

Flow Inside the Equipent

Workpiece loading and unloading are done manually. Otherwise, they are done automatically.

Wet Blasting (Automatic)

Equipment Spec

Dimensions 1650(W) x 2330(D) x 2380(H)mm
Workpiece Sizes 600 x 300mm
Gun 320 mm Wide Gun x 1
Gun Drive Type X-axis 610 mm φ-axis 0°, 45°, -45° (3positions)
Power Supply AC200V, 50/60 Hz, 3 phases
Power Consumption Approximately 8.1 kW (total of all equipment and rated power)
Air Supply Pressure 0.5 MPa-0.7 MPa
Air Consumption 6.0 m3/min (NTP, at 0.25 MPa of preset blast air pressure)
Options Automatic Abrasive Supply Unit, Sludge Collection Unit, Drainage Unit

"WFB-902T" Catalog

Refer to the equipment catalogs "WFB-902T" for this equipment.
