Wet blasting equipment for R&D Jr. Type Ⅱ
Equipment Overview

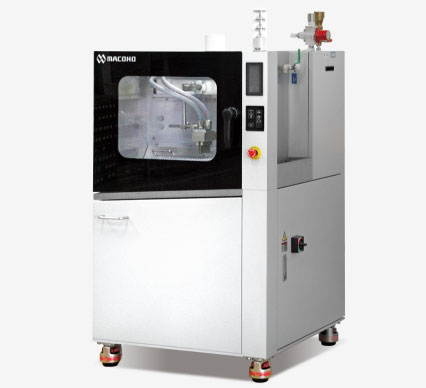

Jr.TypeⅡ
Wet blasting equipment for R&D
Compact equipment suitable for research and development that automatically processes workpieces by using a wide gun on a single axis.
This compact equipment with a wide gun can achieve a uniform treated surface and can be easily installed in a laboratory. Blast projection and gun operation can be easily set. Depending on the abrasive selected, various surfaces can be formed, making it ideal for sample tests and determining conditions.
Refer to the equipment catalogs "Jr.TypeⅡ" for this equipment.
Equipment Features
- Semi-automatic
- Standard
- 160 mm wide gun x 1
- X-Axis Gun Drive
- Manual Loading & Unloading
- Automatic Processing
Main Applications
The main application is for research and development of plate-shaped workpieces.
Flow Inside the Equipent
Workpiece loading and unloading are done manually. Otherwise, they are done automatically.
Wet Blasting (Automatic)
Equipment Spec
| Dimensions | 850(W) x 920(D) x 1450(H)mm |
|---|---|
| Table Size | 420(W) x 300(D)mm |
| Gun | You can choose according to the processing content. (Maximum Gun Size: 160 mm wide gun x 1) |
| Gun Drive Type | 1-axis Horizontal Slide |
| Gun Drive Speed | 1-200 mm/sec |
| Power Supply | AC200V, 50/60 Hz, 3 phases |
| Power Consumption | Approximately 2.6 kW (total of all equipment and rated power) |
| Air Supply Pressure | 0.5 MPa-0.7 MPa |
| Air Consumption | 2.0 m3/min (NTP) and below (The consumption varies according to the mounted gun and the setting of air pressure.) |
| Options | Automatic Abrasive Supply Unit, Sludge Collection Unit, Drainage Unit |
