Equipment for cold forging lines and billets VD-T008
Equipment Overview
VD-T008

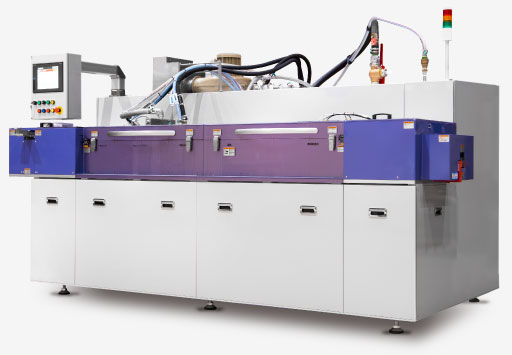

Equipment for cold forging lines and billets
WLS equipment that cleans, descales, and lubricates billet materials.
This equipment is for "WLS" (Wet Blast Lubrication) that demonstrates lubrication performance that exceeds that of bonderizing used in cold forging and increases die life by 5 times. "WLS" is our proprietary technology that replaces the black coating removal process (shot blasting, etc.) and the lubrication (bonderizing) process.
Refer to the equipment catalogs "VD-T008", and the Application catalog "WLS" for this equipment.
Equipment Features
- Automatic
- Custom
- 90 x 2.5 mm Wide Gun x 2
- Fully Automatic
- Hot Rinse
- 1 Liquid Lubricant Aplication
- Drying
- Thrust Transfer Type
Flow Inside the Equipent
Workpiece loading and unloading are done automatically. Integrated line operation is possible by attaching loading and unloading units to the front and back of the equipment.
Loading
Wet Blasting
Hot Rinse
1 Liquid Lubricant Aplication
Drying
Unloading
Equipment Spec
| Dimensions | 3493(W) x 1685(D) x 2009(H)mm |
|---|---|
| Workpiece Sizes | φ20-40 mm Length: 20-85 mm |
| Processing Time | 20-36 spm |
| Gun | 90 x 2.5 mm Wide Gun x 2 |
| Power Supply | AC200V, 50/60 Hz, 3 phases |
| Power Consumption | Approximately 38 kW (total of all equipment and rated power) |
| Air Supply Pressure | 0.5 MPa-0.7 MPa |
| Air Consumption | 5.0 m3/min (NTP, at 0.4 MPa of preset blast air pressure) |
| Options | Loader, Unloader, Automatic Abrasive Supply Unit, Sludge Collection Unit, Drainage Unit, Iron Dust Collection Equipment |
