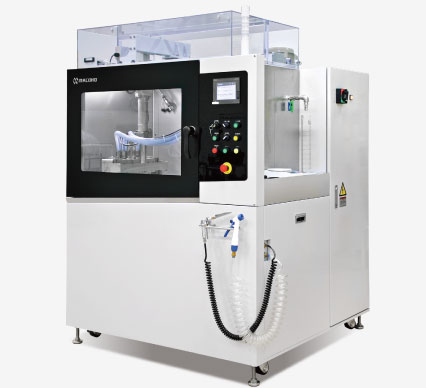

Wet blasting equipment with an X-axis LambdaTypeⅡ
Wet blasting equipment with an X-axis
Automatic processing equipment that uses a single-axis wide gun to processes the entire surface of plate-shaped workpieces.
This processing equipment is ideal for high-mix low-volume production, capable of uniformly processing a 600 x 300 mm area with a wide gun that is driven by a single axis. Teaching pendant allows programming of gun operating position and speed, as well as the ON/OFF of blast projection.
Refer to the equipment catalogs "Lambda TypeⅡ" for this equipment.
- 320 mm wide gun x 1)
- X-Axis Gun Drive
- Manual Loading & Unloading
- Automatic Processing
Improvement of underfill wettability
By finely roughening the circuit surface of the flip chip package and improves the filling property of sealing by under fill.
Scraping of the build-up substrate
A process the filler-containing resin layer on the surface of the build-up substrate uniformly at high speed.
Substrate plating prewash
Removes surface contamination during manufacturing of printed circuit boards, to improve the adhesion of gold plating.
Flow Inside the Equipent
Workpiece loading and unloading are done manually. Otherwise, they are done automatically.
Wet Blasting (Automatic)
|1350(W) x 1348.4(D) x 1930(H)mm
|max.600 x 300mm
|320 mm wide gun x 1
|Gun Drive Type
|1-axis Horizontal Slide
|Gun Drive Speed
|AC200V, 50/60 Hz, 3 phases
|Approximately 6.5 kW (total of all equipment and rated power)
|Air Supply Pressure
|0.5 MPa-0.7 MPa
|6.0 m3/min (NTP, at 0.25 MPa of preset blast air pressure)
|Automatic Abrasive Supply Unit, Sludge Collection Unit, Drainage Unit
