WWet blasting equipment for testing Robot Blast

Equipment Overview

Robot Blast

Wet blasting equipment for testing

Equipment with an articulated robot and servo-controlled rotary table that can handle a wide range of tests.

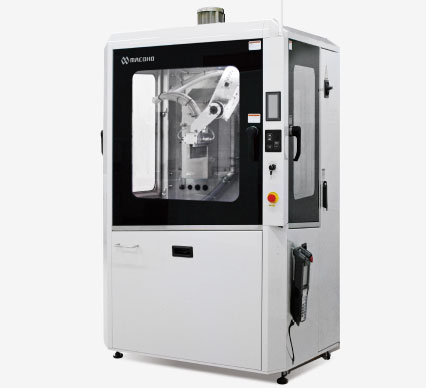

Wet blasting equipment for testing Robot Blast

This equipment is for R&D and is equipped with a 6-axis articulated robot and a servo-controlled rotary table. It can be used for detailed teaching and motion programs. If equipped with a dedicated jig, it can also be used for medium-volume production.

Refer to the equipment catalogs "Robot Blast" for this equipment.

Equipment Features

  • Semi-automatic
  • Standard
  • 6-axis robot gun drive
  • Manual Loading & Unloading
  • Automatic Processing

Main Applications

The main application is for research and development of plate-shaped and three-dimensional workpieces.



Flow Inside the Equipent

Workpiece loading and unloading are done manually. Otherwise, they are done automatically.

Wet Blasting (Automatic)

Equipment Spec

Dimensions 1100(W) x 1500(D) x 1905(H)mm
Workpiece Sizes 400(W) x 400(D) x 300(H)mm
Basic Load Capacity 20kg
Gun System: 6-axis robot. Operating speed: 1 to 200 mm/s
Power Supply AC200V, 50/60 Hz, 3 phases
Power Consumption Approximately 7 kW (total of all equipment and rated power)
Air Supply Pressure 0.5 MPa-0.7 MPa
Air Consumption 3.0 m3/min (NTP, at 0.4 MPa of preset blast air pressure)
Options Automatic Abrasive Supply Unit, Sludge Collection Unit, Drainage Unit

"Robot Blast" Catalog

Refer to the equipment catalogs "Robot Blast" for this equipment.
