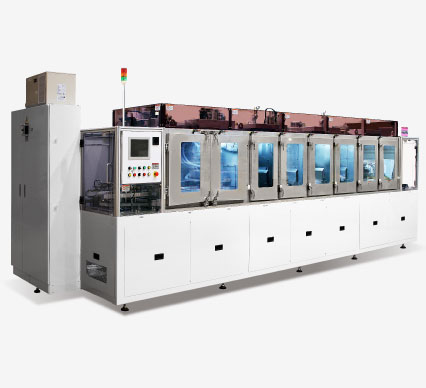

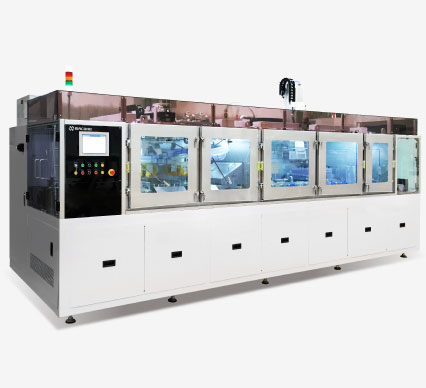

Line-production wet blasting equipment for cutting tools W3MN-Q010
Equipment Overview
W3MN-Q010
Line-production wet blasting equipment for cutting tools
Equipment with a wide gun that does batch processing and performs surface treatment of cutting tools loaded in pallets.
This is continuous automatic equipment for cutting tools with a pallet transfer system that can be integrated with your line. High production efficiency is achieved by batch processing of multiple workpieces on pallets. Automatically performs everything from wet blasting, rinsing to draining.
Refer to the equipment catalogs "W3MN-Q010", and the Exhibition materials set "JIMTOF 2022" for this equipment.
Equipment Features
- Automatic
- Custom
- 320 mm Wide Gun x 4
- Fully Automatic
- Rinse
- Drying
- Pallet Loading Type
Main Applications
Flow Inside the Equipent
Workpiece loading and unloading are done automatically. Integrated line operation is possible by attaching loading and unloading units to the front and back of the equipment.
Loading
Wet Blasting 1
Wet Blasting 2
Rough Rinse
1st Rinse
Ultra-sonic Rinse
2nd / 3rd Rinse
Drying
Unloading
Equipment Spec
| Dimensions | 6500(W) x 1875(D) x 2368(H)mm |
|---|---|
| Target Tray Size | 246(W) x 298(D) x 22(H)mm |
| Gun | 320 mm Wide Gun x 4 |
| Power Supply | AC200V, 50/60 Hz, 3 phases |
| Power Consumption | Approximately 40 kW (total of all equipment and rated power) |
| Air Supply Pressure | 0.5 MPa-0.7 MPa |
| Air Consumption | 13 m3/min (NTP, at 0.4 MPa of preset blast air pressure) |
| Options | Loader, Unloader, Automatic Abrasive Supply Unit, Sludge Collection Unit, Drainage Unit |
