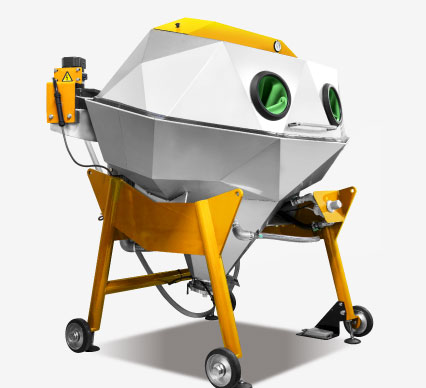

Manual wet blasting equipment for long workpieces MS-11

Equipment Overview

MS-11

Manual wet blasting equipment for long workpieces

Highly wear-resistant and versatile manual equipment that is a step up from MRB-7.

This manual device is a higher-end version of MRB-7. Thaks to the highly wear-resistant specifications, there are no restrictions on the abrasive materials that can be used. Ideal for maintenance, restoration, and rebuilding work on long workpieces over 1 meter in length, as well as for small-lot grinding and descaling work.

Catalog Download Page

Refer to the equipment catalogs "MS-11" for this equipment.

Equipment Features

Manual
Lot product

3/8 in. Compact Gun x 1
Manual Loading & Unloading
Manual Processing

Main Applications

Maintenance of plant equipment

Wet Blast can physically clean oil, rust, dirt, etc. that adhered to the parts that were removed during equipment maintenance.

Cleaning of critical parts for maintenance

Removes rust and stubborn stains, streamlining operations and significantly reducing maintenance time.

Flow Inside the Equipent

Loading and unloading of workpieces and wet blasting are done manually.

Wet Blasting (Manual)

Equipment Spec

Dimensions	1390(W) x 1147(D) X 1475(H)mm
Workpiece Sizes	1100(W) x 600(D) X 300(H)mm
Basic Load Capacity	30kg
Gun	3/8 in. Compact Gun x 1
Power Supply	AC200V, 50/60 Hz, 3 phases
Power Consumption	Approximately 1.2 kW (total of all equipment and rated power)
Air Supply Pressure	0.5 MPa-0.7 MPa
Air Consumption	0.7 m³/min (NTP, at 0.4 MPa of preset blast air pressure)
