Wet blasting equipment for thin plate-shaped workpieces mini PFE 100/200

Equipment Overview

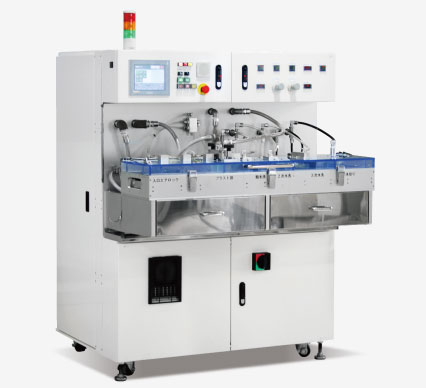

mini PFE 100/200

Wet blasting equipment for thin plate-shaped workpieces.

Compact automatic equipment for simultaneous double-sided processing of lead frames and other thin plate-shaped workpieces.

Small automatic equipment that processes plate-shaped workpieces. This is a smaller and low-cost version of PFE. Suitable for processing semiconductors, ceramic plates, copper plates, films, etc. We have two types available depending on the workpiece size.

Catalog Download Page

Refer to the equipment catalogs "mini PFE 100" and "mini PFE 200" for this equipment.

Equipment Features

Automatic
Standard

110 mm Wide Gun x 2 or 220 mm Wide Gun x 2 - One each for top and bottom
Fully Automatic
Rinse
Conveyor Type

Main Applications

Semiconductor resin deburring

As a pre-treatment for the plating process, the burrs caused at the resin molding of the semiconductor packaging are removed.

Removal of overmolding from embedded LED chips

A processing application that exposes chips and electrodes by scraping over molded resins such as epoxy.

Deburring of LED pacakages

By cleaning the burrs and dirt on the LED package, it is prevent loss of reflectance of the reflector surface.

Removing non-conductive layers from LTCC boards

Removes the glassy nonconductor layer that causes plating defects in LTCC board manufacturing.

Improved adhesion of difficult-to-adhere resin materials

This pretreatment improves the adhesion strength of difficult-to-adhere resin materials.

Flow Inside the Equipent

Workpiece loading and unloading are done automatically. Integrated line operation is possible by attaching loading and unloading units to the front and back of the equipment.

Wet Blasting

Rough Rinse

2nd Rinse

3rd Rinse

Draining

Unloading

Equipment Spec

mini PFE 100

Dimensions	1200(W) x 1250(D) x 1600(H)mm
Workpiece Sizes	Width: 20-100 mm　Length: 100-250 mm　Thickness: 0.1-1.5 mm (depending on shape)　Allowable workpiece warpage: less than 1 mm of center bend
Conveyor Speed	0.1-3.0 m/min
Gun	110 mm Wide Gun x 2 - One each for top and bottom
Power Supply	AC200V, 50/60 Hz, 3 phases
Power Consumption	Approximately 2.6 kW (total of all equipment and rated power)
Air Supply Pressure	0.5 MPa-0.7 MPa
Air Consumption	4.1 m³/min (NTP, at 0.25 MPa of preset blast air pressure)
Options	Loader, Unloader, Automatic Abrasive Supply Unit, Sludge Collection Unit, Drainage Unit

mini PFE 200

Dimensions	1700(W) x 1650(D) x 1650(H)mm
Workpiece Sizes	Width: 20-200 mm　Length: 100-250 mm　Thickness: 0.1-1.5 mm (depending on shape)　Allowable workpiece warpage: less than 1 mm of center bend
Conveyor Speed	0.1-3.0 m/min
Gun	220 mm Wide Gun x 2 - One each for top and bottom
Power Supply	AC200V, 50/60 Hz, 3 phases
Power Consumption	Approximately 4.3 kW (total of all equipment and rated power)
Air Supply Pressure	0.5 MPa - 0.7 MPa
Air Consumption	7.7 m³/min (NTP, at 0.25 MPa of preset blast air pressure)
Options	Loader, Unloader, Automatic Abrasive Supply Unit, Sludge Collection Unit, Drainage Unit
