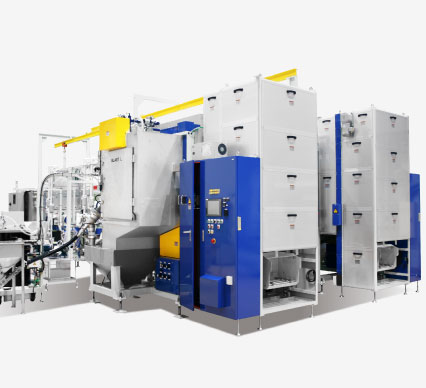

Large-capacity barrel-type wet blasting equipment BL-740-TH
Equipment Overview
BL-740-TH
Large-capacity barrel-type wet blasting equipment
Large-capacity barrel-type continuous automatic equipment that performs cleaning, roughening, and phosphating of metal parts.
Equipment for WBP (Wet Blast Phosphating). It performs everything from cleaning and roughening of metal parts to phosphating. It can handle cylindrical shapes such as bushings, complex shapes such as mounts, and plate-shaped parts such as disc brakes.
Refer to the Application catalog "WBP" for this equipment.
Equipment Features
- Automatic
- Custom
- φ11 × 8-multi Staggered Gun
- Fully Automatic
- 40L Tire-Shaped Rubber Barrel
Main Applications
Flow Inside the Equipent
Workpiece loading and unloading are done automatically.
Loading
Degreasing
Wet Blasting
Rinse
Activation
Phosphating
Rinse / Hot Rinse
Drying
Unloading
Equipment Spec
| Dimensions | 12327(W) x 3850(D) x 3895(H)mm |
|---|---|
| Capacity Per Batch | Processing Volume: Max 40 L / Processing Weight: Max 50 kg |
| Gun | φ11 × 8-multi Staggered Gun |
| Power Supply | AC200V, 50/60 Hz, 3 phases |
| Power Consumption | Approximately 34 kW (total of all equipment and rated power) |
| Air Supply Pressure | 0.5 MPa-0.7 MPa |
| Air Consumption | 12.5 m3/min (NTP, at 0.4 MPa of preset blast air pressure) |
| Options | Loader, Unloader, Automatic Abrasive Supply Unit, Sludge Collection Unit, Drainage Unit, Phosphating Sludge Collection Equipment |
