Wet blasting equipment for large-sized plate-shaped Sigma

Equipment Overview

Sigma

Wet blasting equipment for large-sized plate-shaped

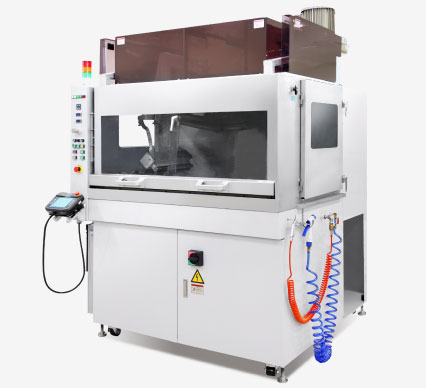

Wet blasting equipment with a large, wide gun for processing high-density mounting boards.

This semi-automatic processing equipment is equipped with a large 630 mm wide gun. It is ideal for roughening the substrate surface to improve the adhesion strength of plating and solder resists, and cleaning for desmear treatment after laser via processing and solder resist removal.

Catalog Download Page

Refer to the equipment catalogs "Sigma" for this equipment.

Equipment Features

Semi-automatic
Standard

630mm mm wide gun x 1
Manual Loading & Unloading
Automatic Processing
Supports Large-Sized Workpieces

Main Applications

Improvement of underfill wettability

By finely roughening the circuit surface of the flip chip package and improves the filling property of sealing by under fill.

Scraping of the build-up substrate

A process the filler-containing resin layer on the surface of the build-up substrate uniformly at high speed.

Substrate plating prewash

Removes surface contamination during manufacturing of printed circuit boards, to improve the adhesion of gold plating.

Thin-film coating pretreatment

Wet Blasting firmly form coatings by the anchor effect due to its time-independent Nano-level precise unevenness.

Flow Inside the Equipent

Workpiece loading and unloading are done manually. Otherwise, they are done automatically.

Wet Blasting (Automatic)

Equipment Spec

Dimensions	1550(W) x 1530(D) x 2106(H)mm
Table Size	1200(W) x 700(D)mm
Processing Range	750(W) x 600(D)mm
Gun	630mm wide gun x 1本
Power Supply	AC200V, 50/60 Hz, 3 phases
Power Consumption	Approximately 6.5 kW (total of all equipment and rated power)
Air Supply Pressure	0.5 MPa-0.7 MPa
Air Consumption	10.5 m³/min (NTP, at 0.25 MPa of preset blast air pressure)
Options	Automatic Abrasive Supply Unit, Sludge Collection Unit, Drainage Unit
