Hanger-type wet blasting equipment ILB-604

Equipment Overview


Hanger-type wet blasting equipment

Automatic equipment that has complex-shaped metal parts put on hangers and then processes the entire surface of the parts.

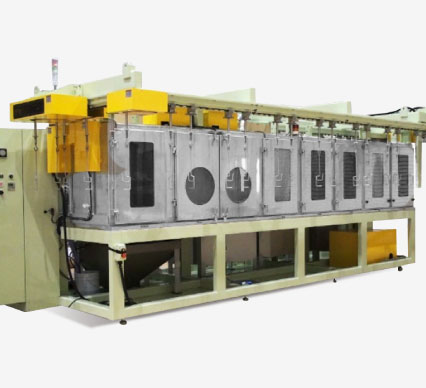

Hanger-type wet blasting equipment ILB-604

This is automatic equipment that automatically degreases and cleans workpieces on hangers. Various workpieces can be handled by changing hangers. Since the workpieces do not collide with each other, no dents or deformations occur.

Equipment Features

  • Automatic
  • Custom
  • 1/2 in. 4-multi Gun x 2
  • Fully Automatic
  • Rinse
  • Hanger Transfer Type

Flow Inside the Equipent

Workpiece loading and unloading are done automatically.


Wet Blasting

Rough Rinse

2nd Rinse

3rd Rinse

Hot Rinse



Equipment Spec

Dimensions 6582(W) x 3189(D) x 2525(H)mm
Workpiece Sizes Tolerance Range: φ180 x 250 mm
Basic Load Capacity 1 kg per piece
Gun 1/2 in. 4-multi Gun x 2
Power Supply AC200V, 50/60 Hz, 3 phases
Power Consumption Approximately 65 kW (total of all equipment and rated power)
Air Consumption 9 m3/min (NTP, at 0.3 MPa of preset blast air pressure)
Options Loader, Unloader, Automatic Abrasive Supply Unit, Sludge Collection Unit, Drainage Unit
