Wet blasting equipment for cutting tools VD-W019

Equipment Overview

VD-W019

Wet blasting equipment for cutting tools

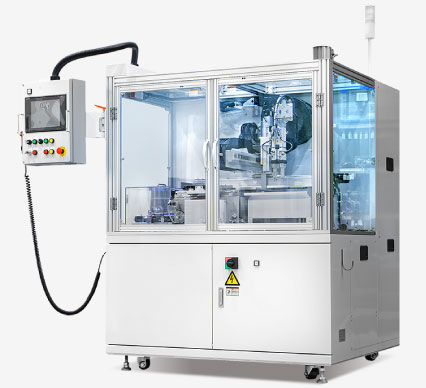

Wet blasting equipment for cutting tools that can automatically control the cutting edge shape (K-value).

This is a one-workpiece-at-a-time processing method in which workpieces are automatically handled and processed individually. The greatest feature of this system is that it can process objects with a high degree of accuracy. In addition, unlike the similar equipment "RBI-203," the cutting edge shape (K-value) can be automatically controlled.

Catalog Download Page

Refer to the equipment catalogs "VD-W019", and the Exhibition materials set "JIMTOF 2022" for this equipment.

Equipment Features

Automatic
Custom

6 x 12 mm Mini-velo Gun x 2
θ-axis Chuck Drive
Manual Loading & Unloading
Automatic Processing
XYZ Axis Transfer Type
Pallet Loading Type

Main Applications

Coating pretreatment of cutting tools

A pre-adhesion treatment that improves the adhesion of the coating for carbide tool surface.

Droplet removal

Removes droplets generated over coating on tool surface without damaging the coating film.

Cutting tool tip honing

Extend the tool life by removing burrs on the cutting edge edges generated in the manufacturing process of carbide tools.

Flow Inside the Equipent

Workpiece (pallet) loading and unloading are done manually. Otherwise, they are done automatically.

Loading (pallet)

Wet Blasting

Rinse

Unloading (pallet)

Equipment Spec

Dimensions	1450(W) x 1425(D) x 1800(H)mm
Workpiece Sizes	Inscribed circle: Approx. φ12.7-25.4 mm / Thickness: Approx. 4-6 mm *Excluding tips without holes.
Gun	6 x 12 mm Mini-velo Gun x 2
Power Supply	AC200V, 50/60 Hz, 3 phases
Power Consumption	Approximately 2.5 kW (total of all equipment and rated power)
Air Supply Pressure	0.5 MPa-0.7 MPa
Air Consumption	1.6 m³/min (NTP, at 0.4 MPa of preset blast air pressure)
Options	Automatic Abrasive Supply Unit, Sludge Collection Unit, Drainage Unit
