Beautification of exterior parts

Processing Details

  • Peening

Features of Medibright

Medibright = Media + Bright

It is our own system of surface processing which differs from the usual surface finishing, such as hair-line and mirror finishing, and satin finishing.

Various surface finishes from dully bright surface finish to glossy half-bright surface can be applicable by using the characteristic of wet-blasting which can project micro-particles, by using a special gun which can project slurry (mixed liquid of abrasives and water) uniformly, and the combination of abrasive conditions such as material type, shape and size. It is equivalent to all sorts of metallic material such as iron, copper, stainless steel, aluminum etc. and treatment to complex shapes is applicable. Also, finishing, cleaning oil and foreign objects, removing rust, removing welding by burning can be done at the same time. Today it is used for surface finish of several purposes such as the main frame for digital devices like digital cameras, engine body for automobile/bike and even housing materials.

デジタルカメラ
エンジンの表面仕上げ

Differences of processing surface

  Spherical
(Glass Beads)
Oval
(Zirconia Beads)
Angular
(Alumina)
Shape of abrasives ガラスビーズ形状 ジルコニアビーズ形状 アルミナ形状
Feature It becomes a smooth dimple shape and bright surface. It becomes a non-uniform dimple shape and has a dull satin surface. It becomes sharp edged and uneven shape and has satin surface.
Surface photographs ガラスビーズ外観 ジルコニアビーズ外観 アルミナ外観
Cross-sectional shape
(Difference of optical reflection)
ガラスビーズ断面形状 ジルコニアビーズ断面形状 アルミナ断面形状
Surface photographs observed by laser microscope ガラスビーズレーザー顕微鏡写真 ジルコニアビーズレーザー顕微鏡写真 アルミナレーザー顕微鏡写真
Surface photographs observed by SEM ガラスビーズ電子顕微鏡写真 ジルコニアビーズ電子顕微鏡写真 アルミナ電子顕微鏡写真

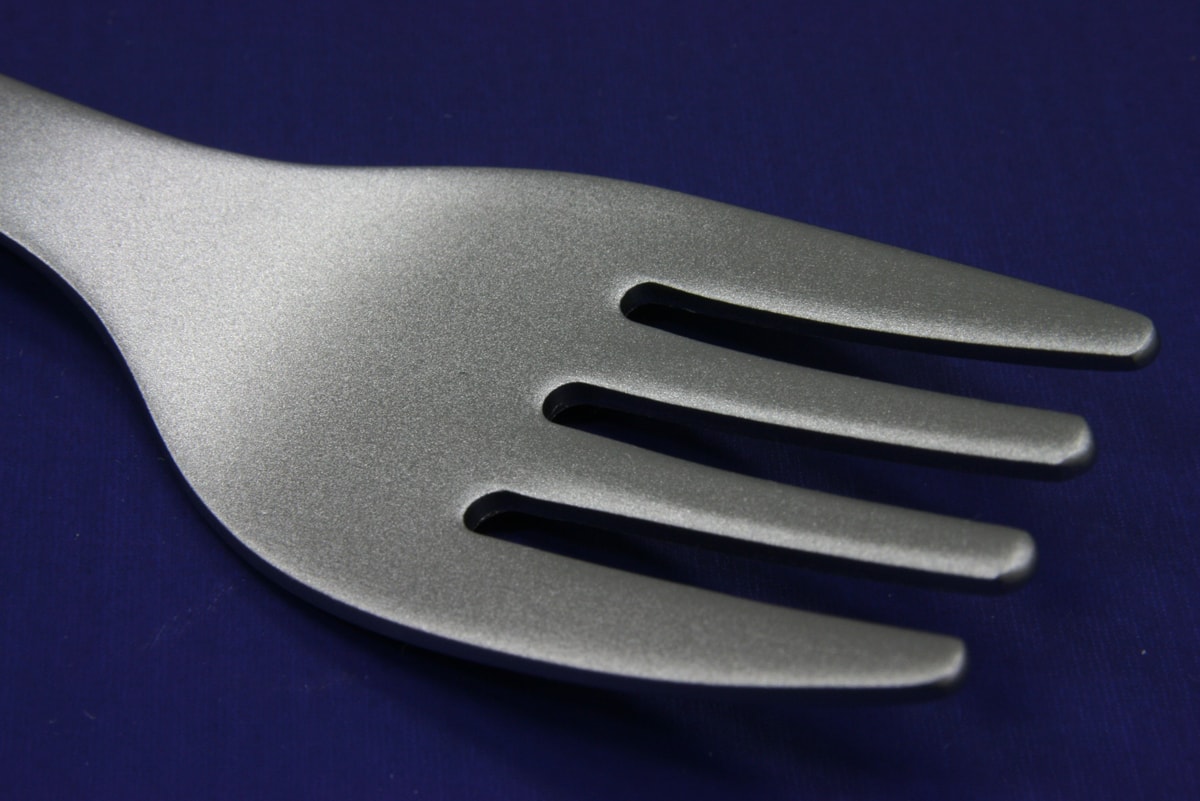

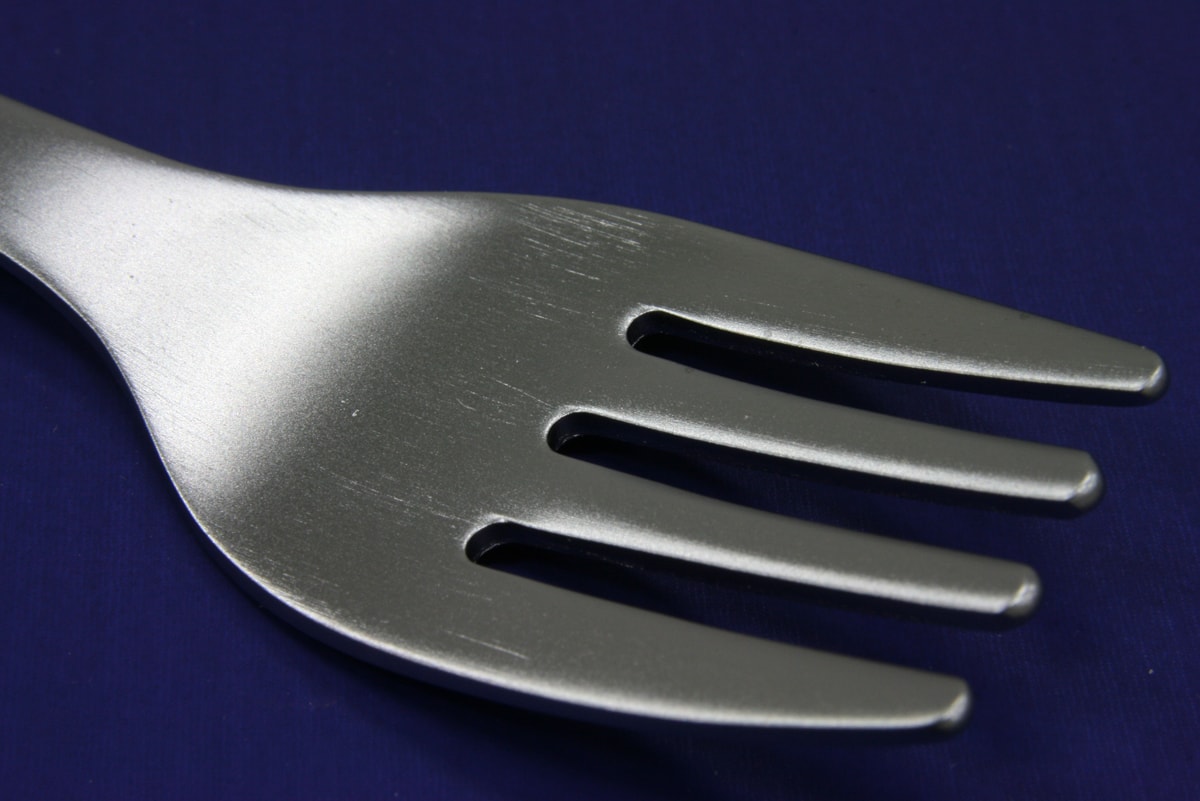

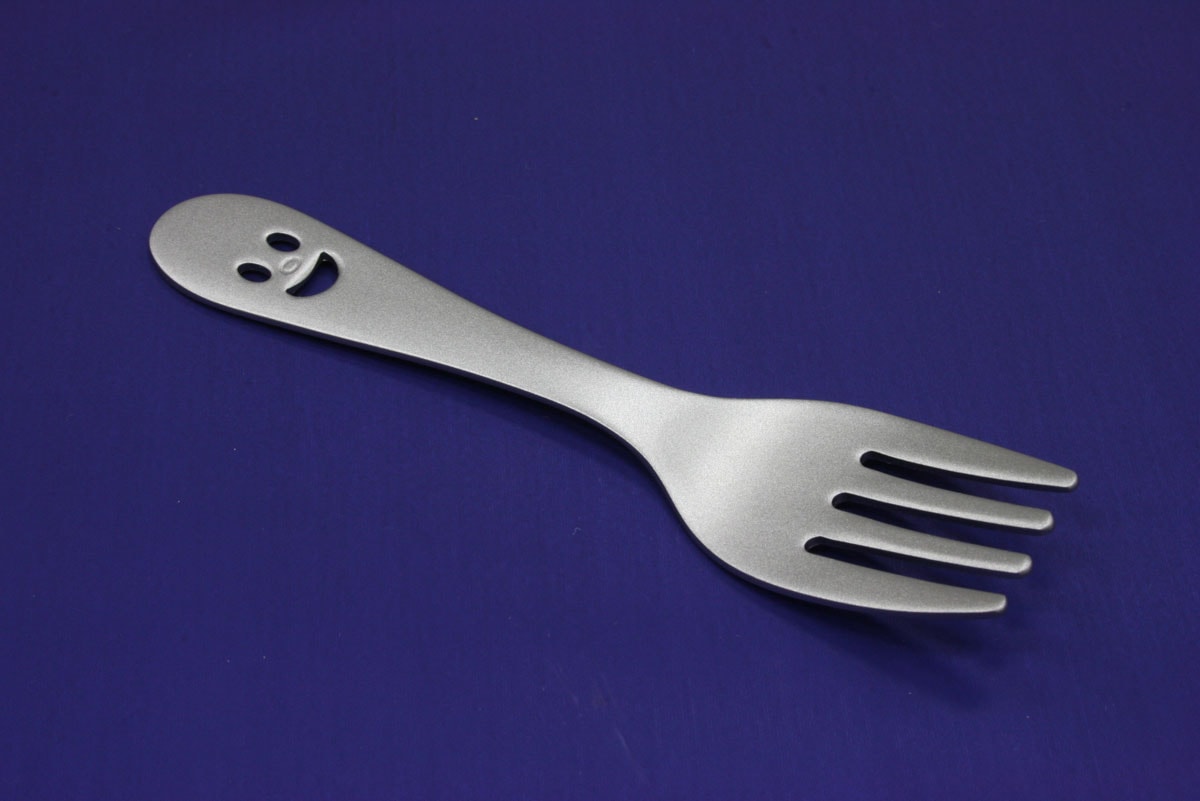

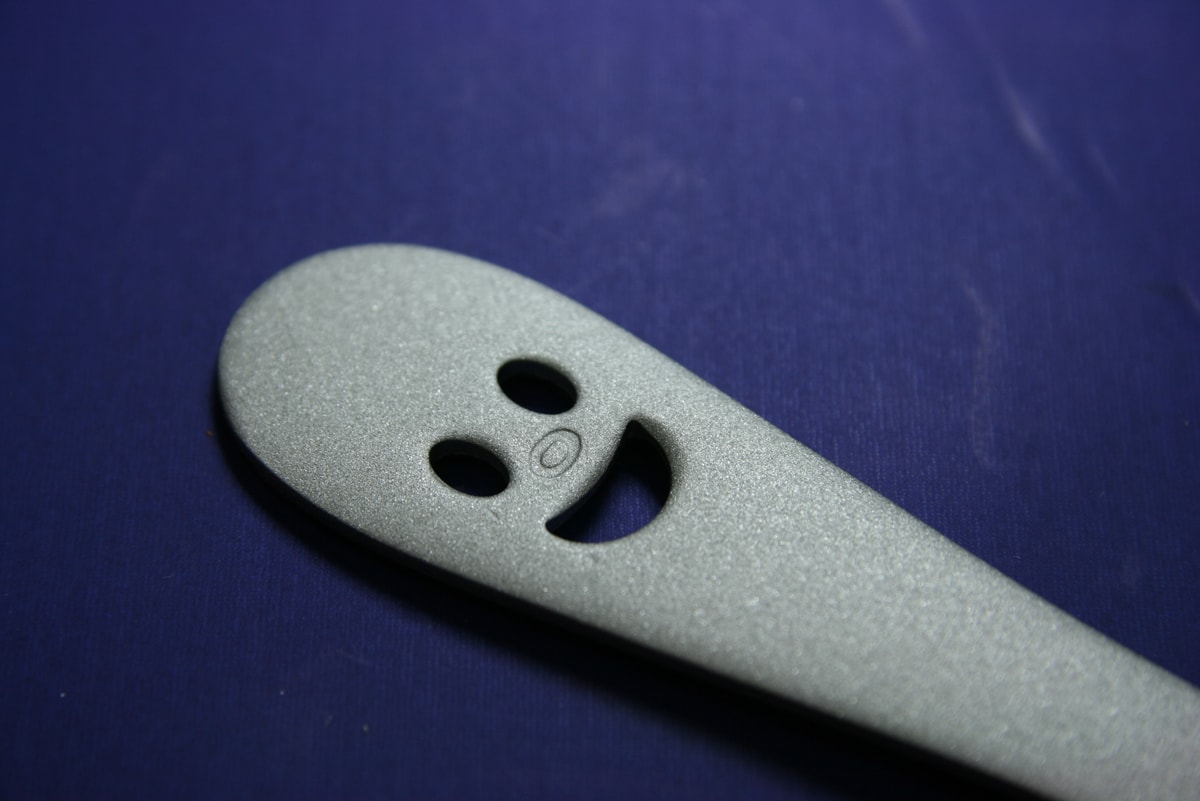

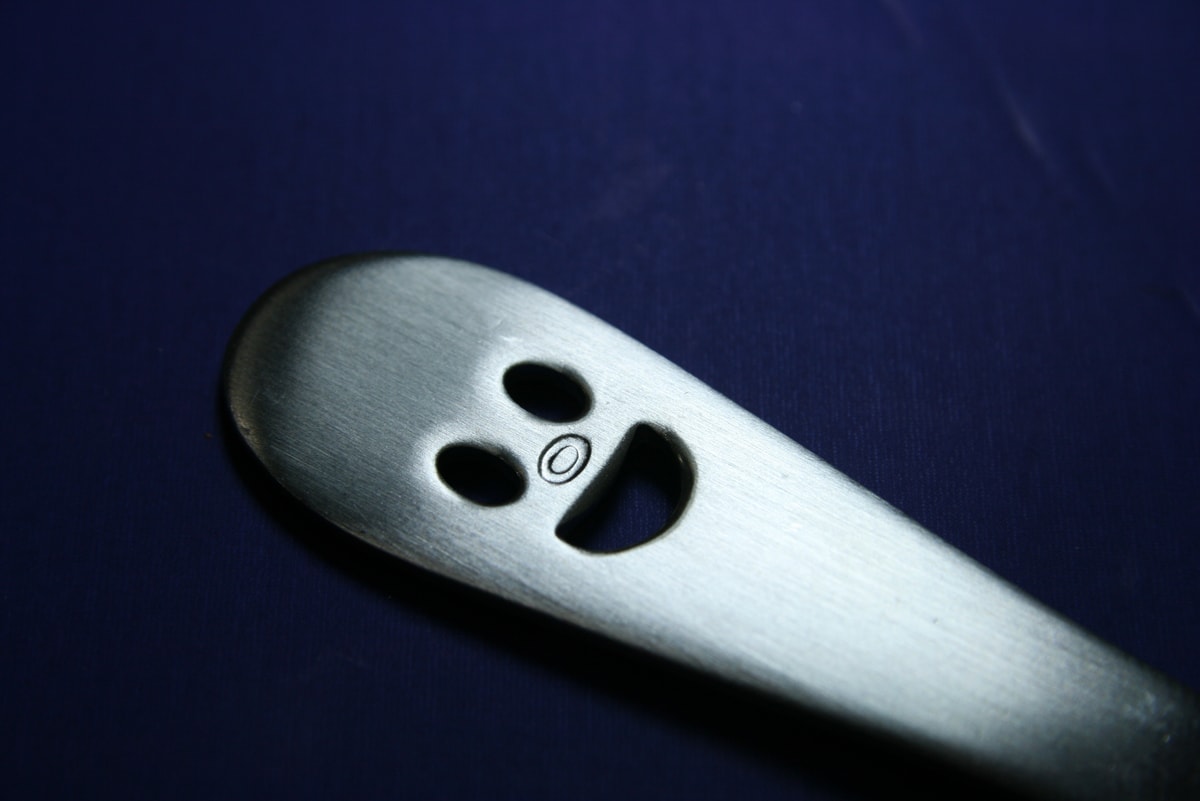

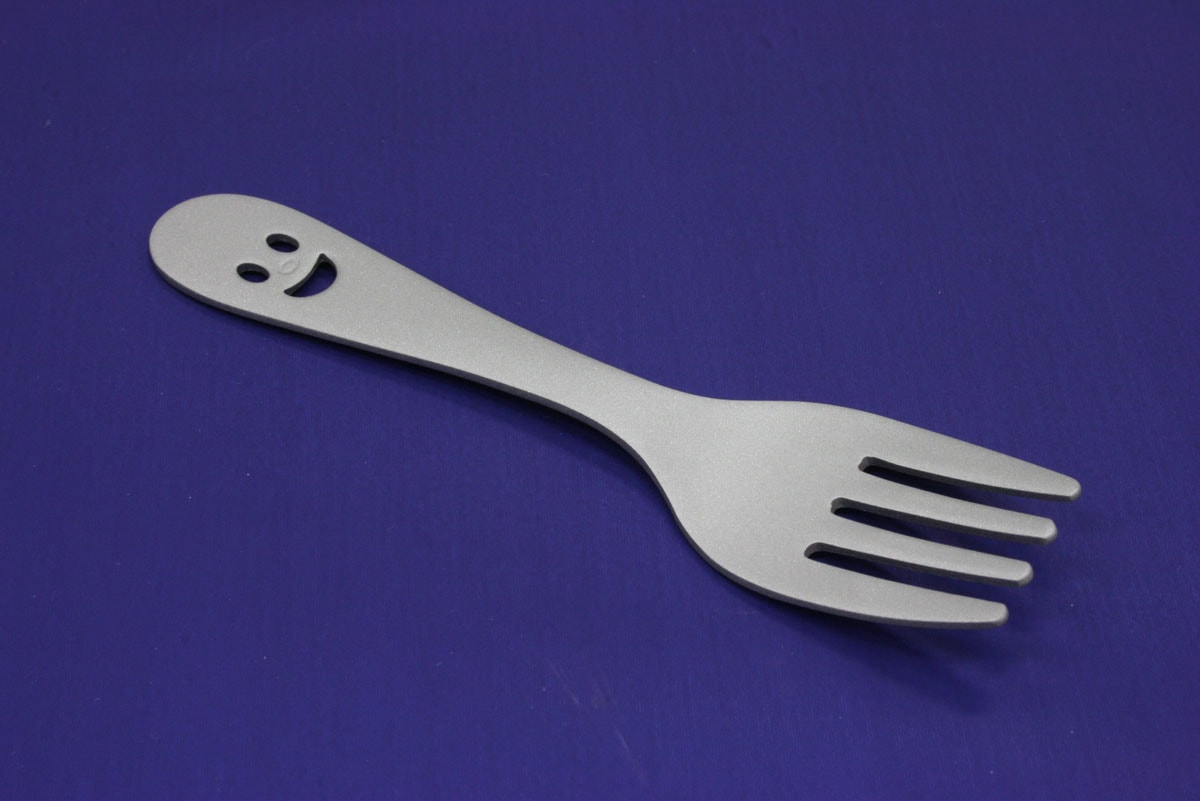

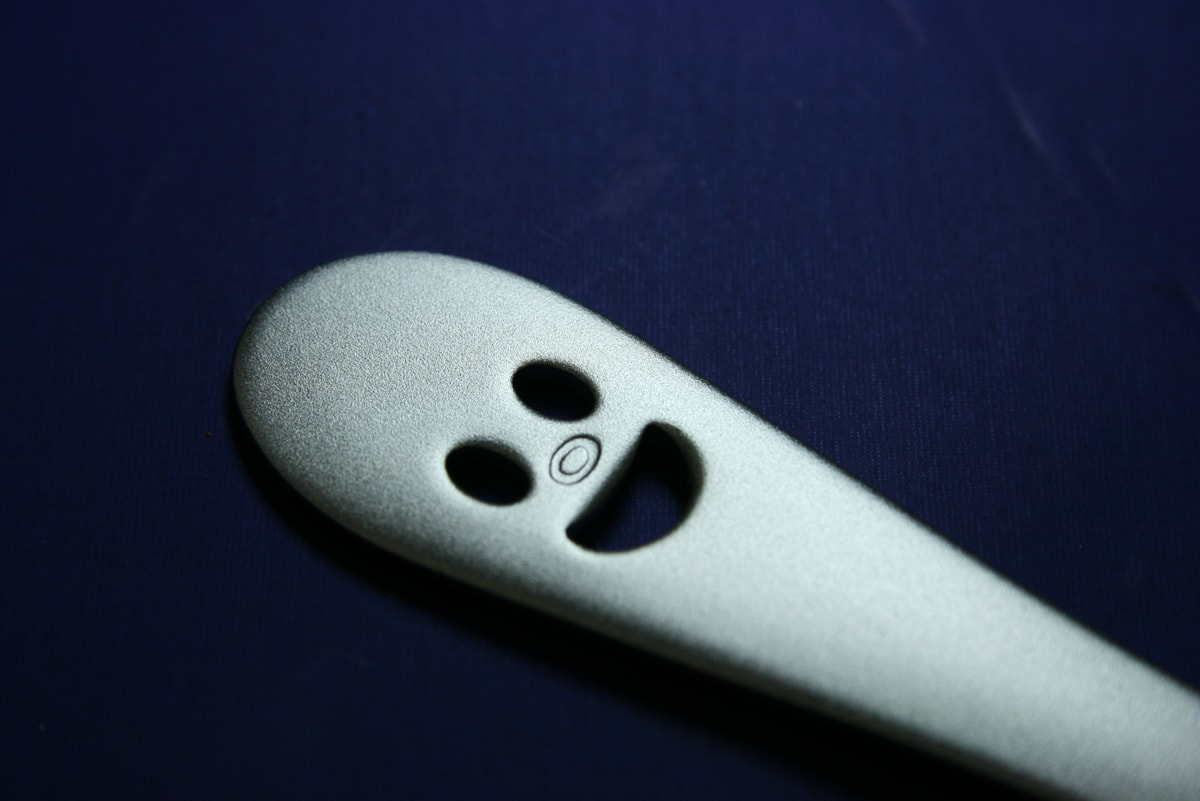

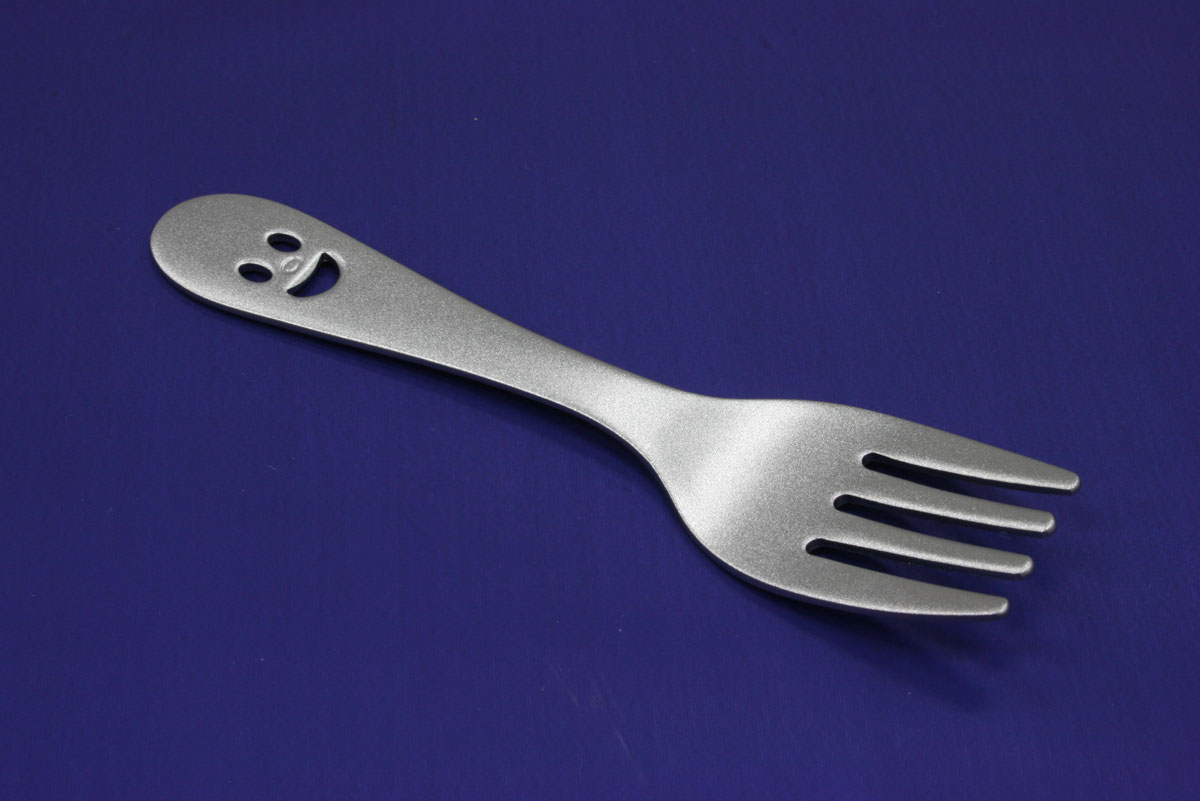

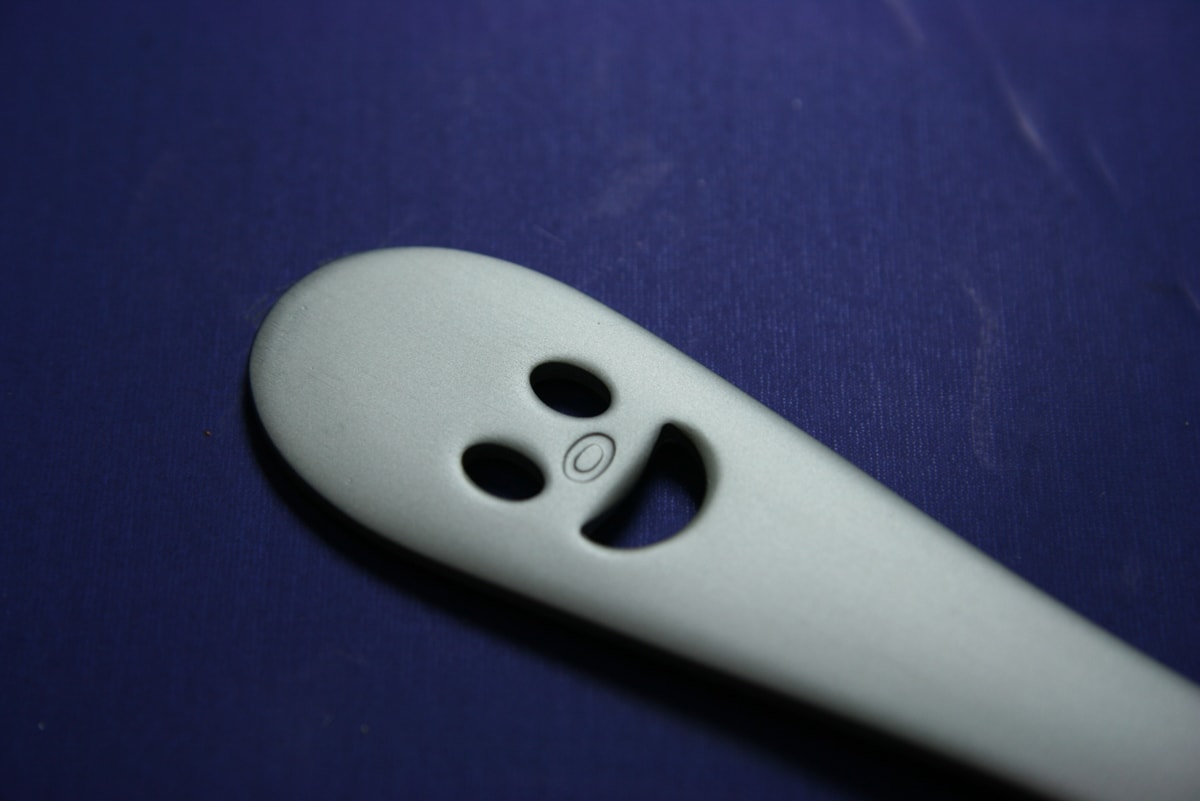

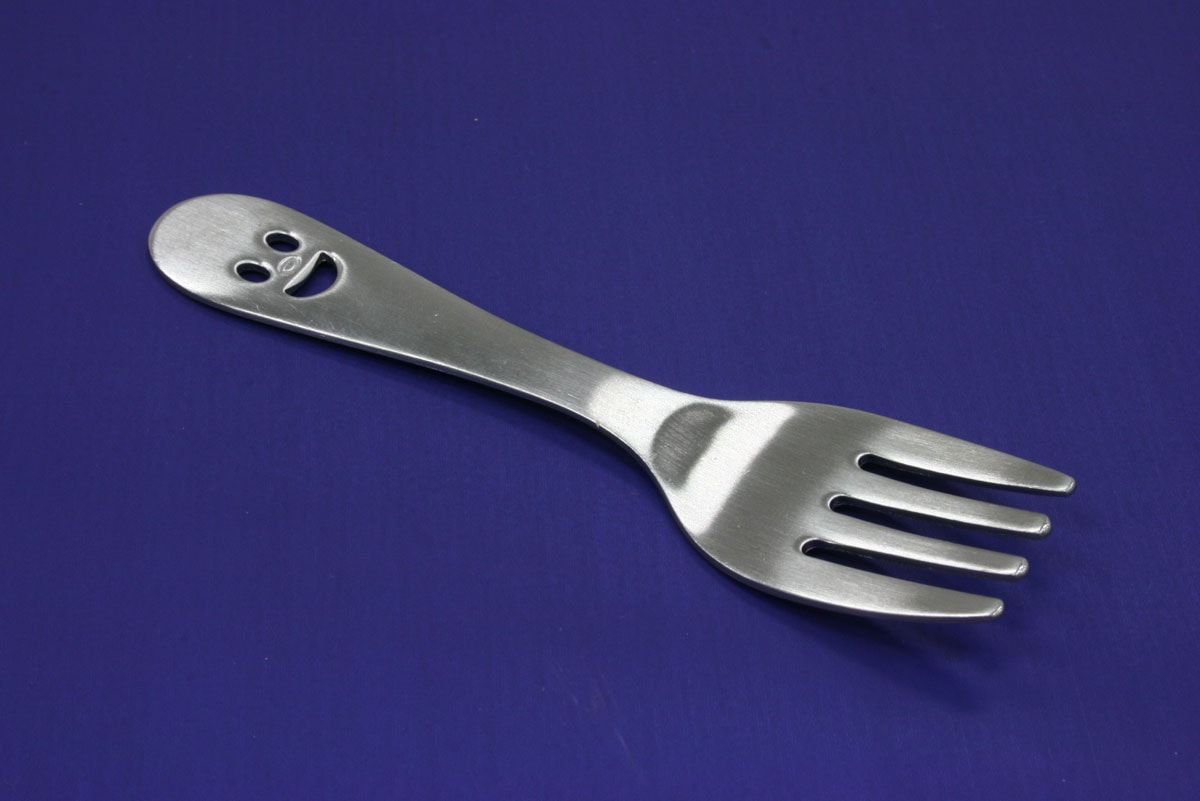

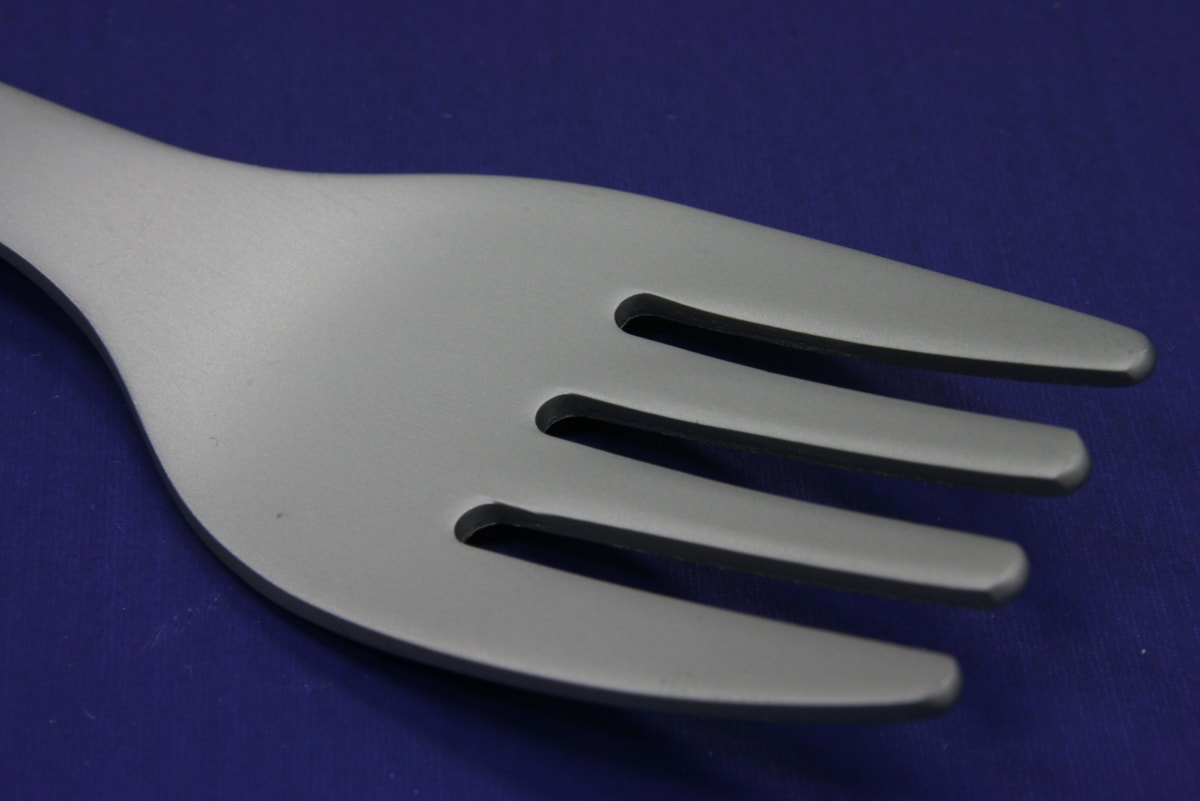

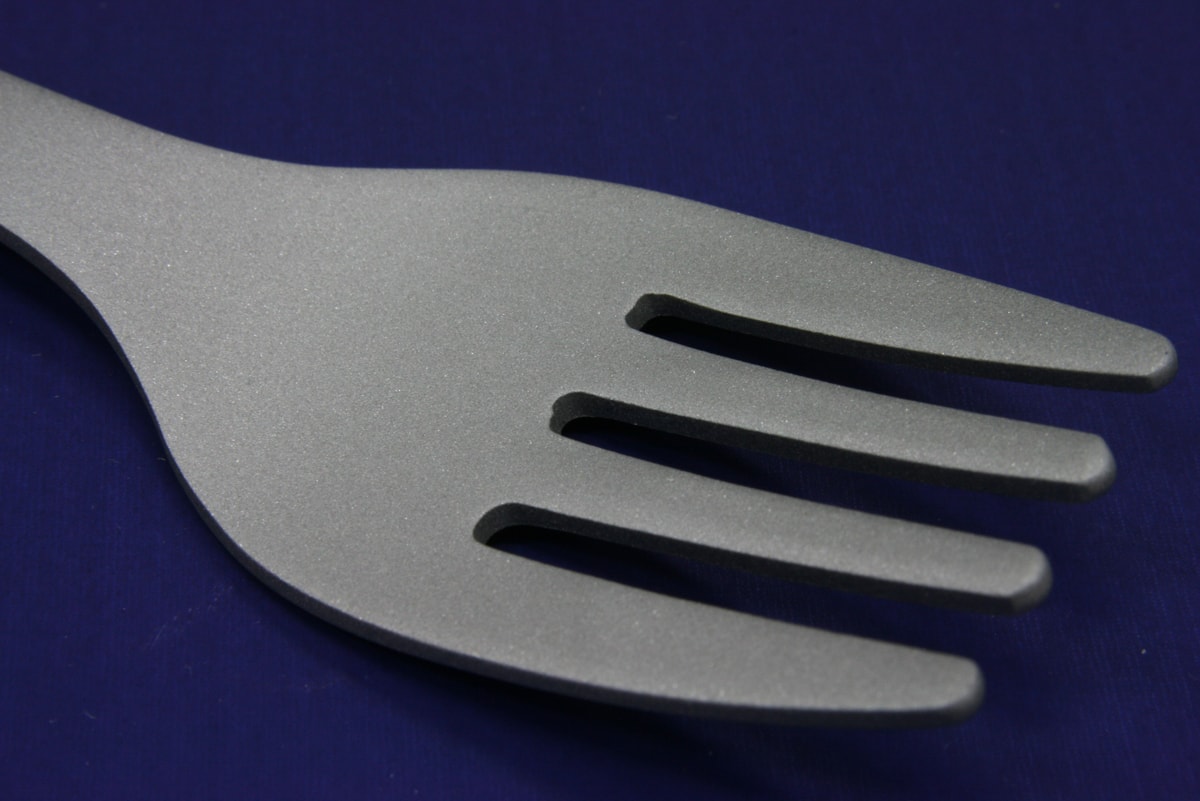

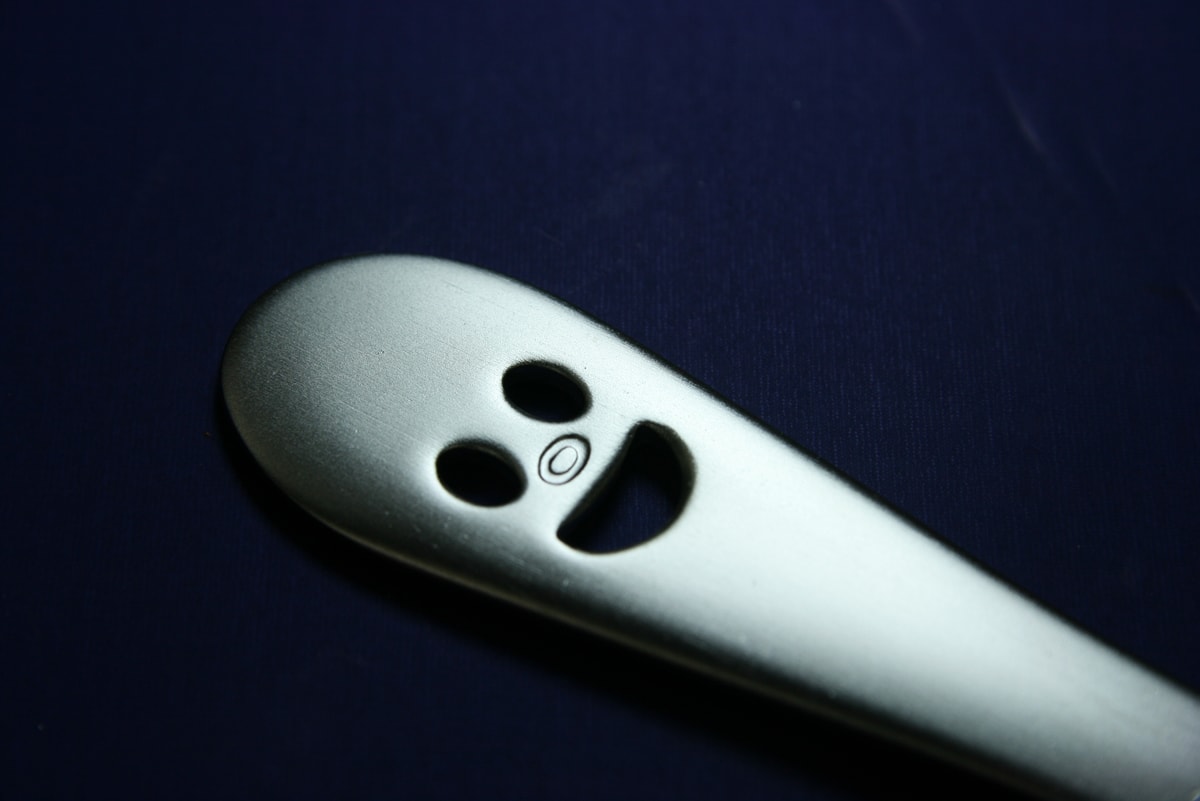

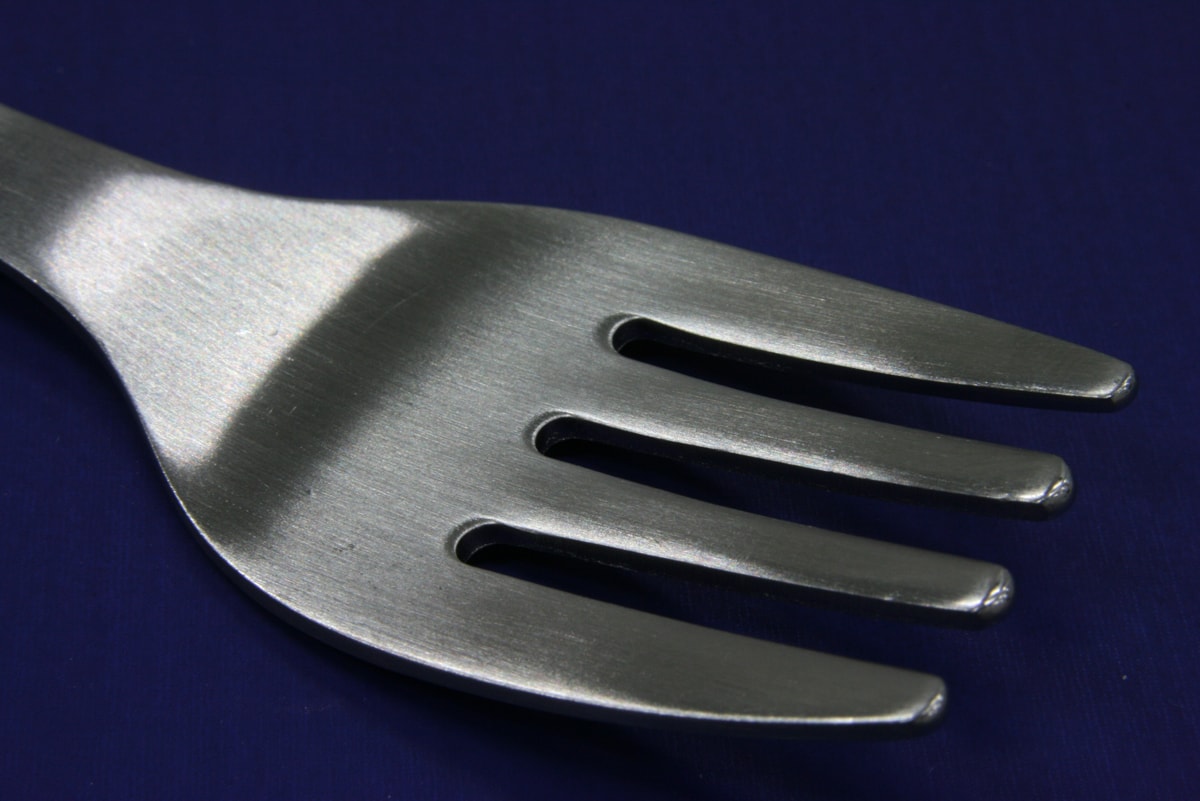

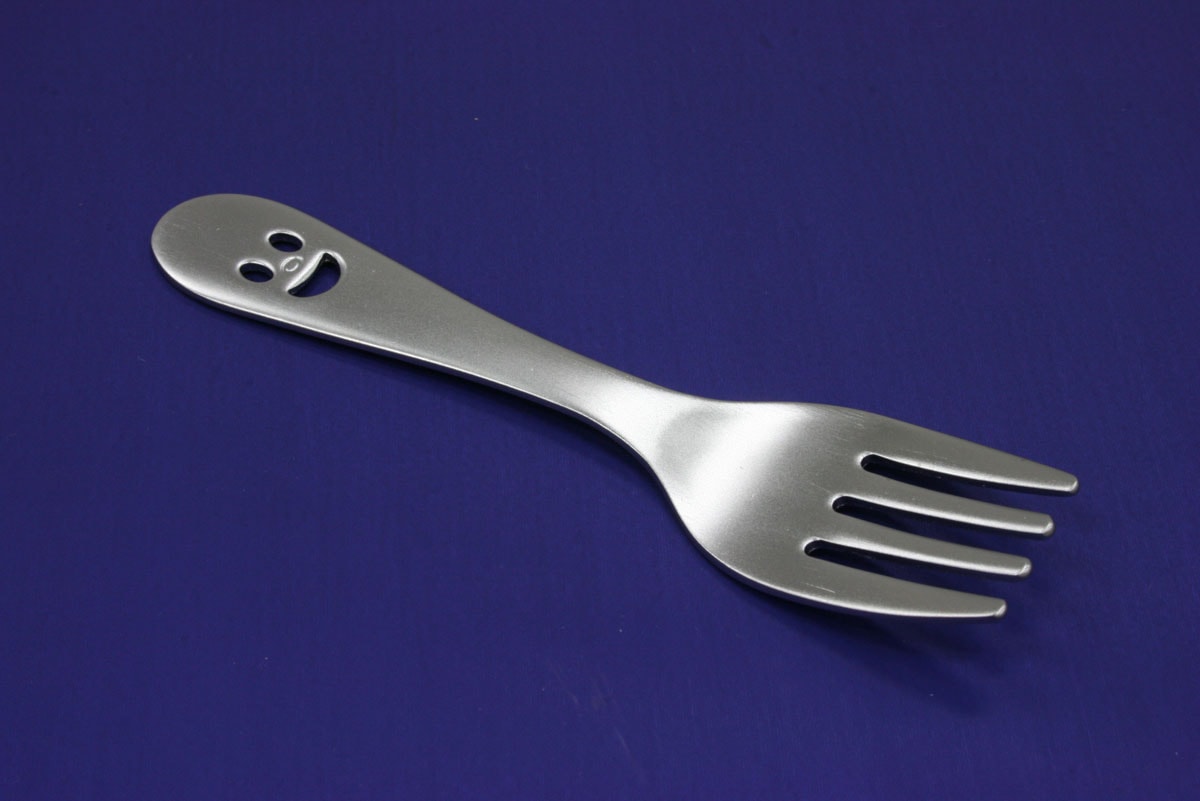

Sample Piece

By changing the shape, size and material of abrasives, various types of surface roughness can be achieved.

Untreated G-0053 G-0250 B-120 A#320 SA#60
未処理サンプル写真1 G-0053サンプル写真1 G-0250サンプル写真1 B-120サンプル写真1 A#320サンプル写真1 SA#60サンプル写真1
未処理サンプル写真2 G-0053サンプル写真2 G-0250サンプル写真2 B-120サンプル写真2 A#320サンプル写真2 SA#60サンプル写真2
未処理サンプル写真3 G-0053サンプル写真3 G-0250サンプル写真3 B-120サンプル写真3 A#320サンプル写真3 SA#60サンプル写真3
