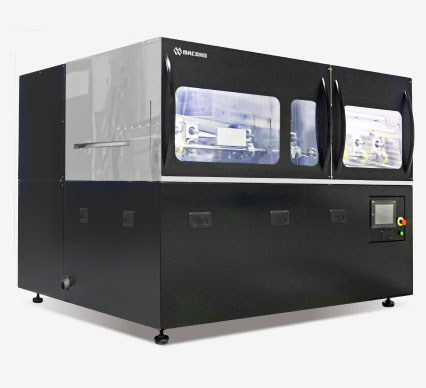

Wet blasting equipment for large-sized plate-shaped VD-P014
Equipment Overview
VD-P014
Wet blasting equipment for large-sized plate-shaped
Wet blasting equipment for thin plate-shaped materials that uniformly processes large-sized plate workpieces.
By using a wide gun, uniform and even processing can be performed on large, thin sheets up to 730 mm in size. Two rinsing processes are also installed in the equipment. The workpieces can be unloaded after the abrasive material has been washed off.
Equipment Features
- Automatic
- Custom
- 180 mm wide gun x 1
- Fully Automatic
- Rinse
- Conveyor Type
Main Applications
Flow Inside the Equipent
Workpiece loading and unloading are done automatically. Integrated line operation is possible by attaching loading and unloading units to the front and back of the equipment.
Loading
Wet Blasting
Rinse
2nd Rinse
Unloading
Equipment Spec
| Dimensions | 2000(W) x 2250(D) x 1650(H)mm |
|---|---|
| Workpiece Sizes | Width: 150-730 mm Length: 400-1000 mm Thickness: 0.5-3.0 mm |
| Gun | 180 mm wide gun x 1 |
| Power Supply | AC200V, 50/60 Hz, 3 phases |
| Air Consumption | 3.9m3/min (NTP, at 0.25 MPa of preset blast air pressure) |
| Options | Loader, Unloader, Automatic Abrasive Supply Unit, Sludge Collection Unit, Drainage Unit |
