Wet blasting equipment for cutting tools RBI-203
Equipment Overview
RBI-203

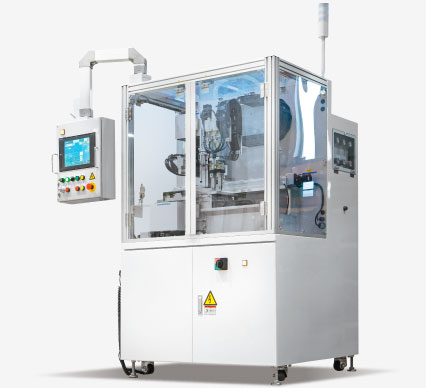

Wet blasting equipment for cutting tools
Automatic machining equipment that performs high-precision cleaning and surface treatment of cutting tools, and R-honing and such of cutting edges.
This is a one-workpiece-at-a-time processing method in which workpieces are automatically handled and processed individually. The greatest feature of this system is that it can process objects with a high degree of accuracy. The system automatically performs everything from wet blasting, rinsing to pallet setting.
Refer to the equipment catalogs "RBI-203", and the Exhibition materials set "JIMTOF 2022" for this equipment.
Equipment Features
- Automatic
- Custom
- 6 x 12 mm Mini-velo Gun x 2
- θ-axis Chuck Drive
- Manual Loading & Unloading
- Automatic Processing
- XYZ Axis Transfer Type
- Pallet Loading Type
Main Applications
Flow Inside the Equipent
Workpiece (pallet) loading and unloading are done manually. Otherwise, they are done automatically.
Loading (pallet)
Wet Blasting
Rinse
Unloading (pallet)
Equipment Spec
Dimensions | 1200(W) x 1150(D) x 1800(H)mm |
---|---|
Workpiece Sizes | Inscribed circle: Approx. φ6.35~25.4 mm / Thickness: Approx. 2.4~9.5 mm *Excluding tips without holes. |
Gun | 6 x 12 mm Mini-velo Gun x 2 |
Power Supply | AC200V, 50/60 Hz, 3 phases |
Power Consumption | Approximately 2.5 kW (total of all equipment and rated power) |
Air Supply Pressure | 0.5 MPa-0.7 MPa |
Air Consumption | 1.4 m3/min (NTP, at 0.4 MPa of preset blast air pressure) |
Options | Automatic Abrasive Supply Unit, Sludge Collection Unit, Drainage Unit |
Related Equipment
"RBI-203" Catalog
Refer to the equipment catalogs "RBI-203", and the Exhibition materials set "JIMTOF 2022" for this equipment.
