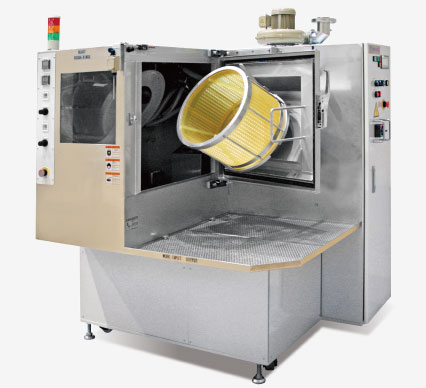

Wet blasting equipment with rotating barrel MSB-S7
Equipment Overview
MSB-S7
Wet blasting equipment with rotating barrel
Semi-automatic wet blast equipment suitable for producing small, complex-shaped parts in small quantities.
This equipment agitates the workpieces with a barrel to evenly treat the entire surface of small complex-shaped parts. It performs wet blasting and rough rinsing. This is the best equipment for high-mix low-volume production.
Refer to the equipment catalogs "MSB-S7" for this equipment.
Equipment Features
- Semi-automatic
- Custom
- 9.5 mm Compact Gun x 2
- Manual Loading & Unloading
- Automatic Processing
- Rough Rinse
Main Applications
Flow Inside the Equipent
Workpiece loading and unloading are done manually. Otherwise, they are done automatically.
Wet Blasting (Automatic)
Equipment Spec
| Dimensions | 1400(W) x 1365(D) x 1830(H)mm |
|---|---|
| Capacity Per Batch | max. 7L |
| Basic Load Capacity | 10kg |
| Gun | 9.5 mm Compact Gun x 2 |
| Power Supply | AC200V, 50/60 Hz, 3 phases |
| Power Consumption | Approximately 1.8 kW (total of all equipment and rated power) |
| Air Supply Pressure | 0.5 MPa-0.7 MPa |
| Air Consumption | 2.0 m3/min (NTP, at 0.4 MPa of preset blast air pressure) |
| Options | Automatic Abrasive Supply Unit, Sludge Collection Unit, Drainage Unit |
