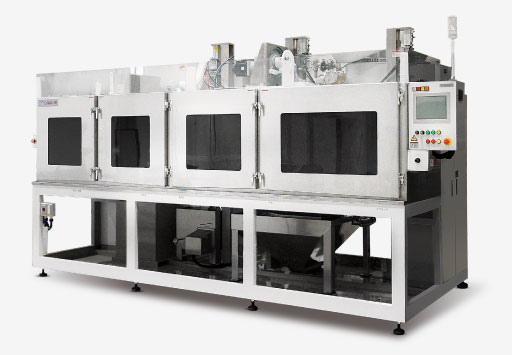

Wet blasting equipment for rod-shaped bar materials BSB-012-C
Equipment Overview
BSB-012-C
Wet blasting equipment for rod-shaped bar materials
Automatic equipment that wet blasts the entire circumference of rod-shaped bar material evenly and at high speed.
Processes the entire circumference of rod-shaped workpieces evenly and at high speed. Capable of handling a wide variety of workpieces. It is a continuous process from loading, wet blasting, rinsing, draining, to unloading, and it discharges a clean workpiece with minimal abrasive residue.
Refer to the equipment catalogs "BSB-012-C" for this equipment.
Equipment Features
- Automatic
- Custom
- φ1/2-inch long nozzle compact gun x 12 pcs.
- Fully Automatic
- Rinse
- Drying
- Roller Transfer Type
Main Applications
Flow Inside the Equipent
Workpiece loading and unloading are done automatically. Integrated line operation is possible by attaching loading and unloading units to the front and back of the equipment.
Loading
Wet Blasting
Rough Rinse
2nd Rinse
Drying
Unloading
Equipment Spec
| Dimensions | 4000(W) x 1750(D) x 2330(H)mm |
|---|---|
| Workpiece Sizes | φ17-φ55 mm Length: 3.8-7 m |
| Gun | φ1/2-inch long nozzle compact gun x 12 pcs. |
| Power Supply | AC200V, 50/60 Hz, 3 phases |
| Power Consumption | Approximately 38 kW (total of all equipment and rated power) |
| Air Supply Pressure | 0.5 MPa-0.7 MPa |
| Air Consumption | 17 m3/min (NTP, at 0.4 MPa of preset blast air pressure) |
| Options | Loader, Unloader, Automatic Abrasive Supply Unit, Sludge Collection Unit, Drainage Unit, Iron Dust Collection Equipment |
"BSB-012-C" Catalog
Refer to the equipment catalogs "BSB-012-C" for this equipment.
